The Time of Flight Mass Spectrometer

The Time of Flight Mass Spectrometer (TOF) was invented many years ago but, due to the factors controlling resolution not being clearly recognized as a result of certain design defects that occurred in the first models and also due to the electronic components available at that time being significantly inferior to those available today, it exhibited limited performance. Consequently, the TOF was rapidly eclipsed by other developing mass spectrometric techniques. However, with improved design, modern fabrication methods and the introduction of Fourier transform techniques, the performance has been vastly improved. As a result, there has been a resurgence of interest in this particular form of mass spectrometry. A diagram of the time of flight mass spectrometer is shown in figure 80.

In a Time of Flight Mass Spectrometer the following relationship holds,

T = L((m/2zeV)0.5)



where (t)

is the time taken for the ion to travel a distance (L)

(V)

is the accelerating voltage applied to the ion,

and (L)

is the distance traveled by the ion to the ion sensor.

It follows that for a given system, the mass of the ion is directly proportional to the square of the transit time to the sensor. The sample is volatilized into the space between the first and second electrodes and then a burst of electrons (over about a microsecond period) is allowed to produce ions. The extraction voltage, (E) is then applied for another short period of time which, as those further from the second electrode will experience a greater force than those closer to the second electrode, this will focus the ions. The ions farther from the electrode will experience a greater accelerating potential than those closer to the electrode and, thus, will catch them up

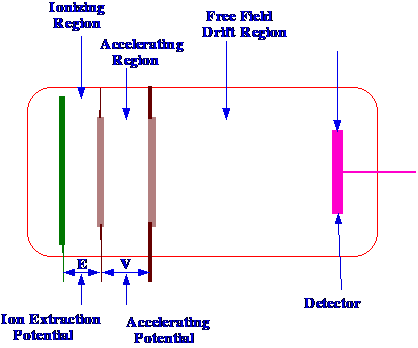

Figure 80. The Time of Flight Mass Spectrometer

After focusing, the accelerating potential (V) is applied for a much shorter period than that used for ion production (ca 100 nsec) so that all the ions in the source are accelerated almost simultaneously. The ions then pass through the third electrode into the drift zone and are then collected by the sensor electrode. One particular advantage of the time of flight mass spectrometer lies in the fact that it is directly and simply compatible with direct desorption from a surface. Consequently, it can be employed with laser desorption and plasma desorption techniques which have already been discussed.

The first commercial Time-of-flight mass spectrometer was manufactured by the Bendix Corporation, which was based on the original design of Wiley McLaren. However, the model suffered from poor resolution largely due to the relatively slow electronics that were available at that time. In the 1970’s Kore Technology Ltd. revived the instrument employing new designs and faster electronics. Over the years as the speed of electronic systems became greater so did the performance of the time-of-flight mass spectrometer and today the instrument has a wide field of application in both research and analytical laboratories. The Proton Transfer Reaction Time-of-Flight Mass spectrometer is shown in figure 80. Chemists interested in the detection and identification of trace contaminants in the atmosphere find the TOF fast and efficient. The Proton Transfer Reaction Time-of-Flight Mass spectrometer shown in figure 80 was designed for the universities of Leicester and York and employed proton transfer ionization source using H3O+ to transfer a proton to the analyst stream. This ionization procedure ionized the molecules efficiently at the same time minimizing molecular fragmentation. The major constituents of the atmosphere do not react with H3O+ and so only the minor components are detected and measured. The TOF system can detect atmospheric contaminants at levels down to one part per trillion.

Courtesy of Kore Technology Ltd.

Figure 80. The Proton Transfer Reaction Time-of-Flight Mass spectrometer

The instrument shown in figure 81 was developed by Kore for the Physics Department of Leicester University to characterize the masses and distribution of metal cluster produced by their proprietary metal cluster source.

Courtesy of Kore Technology Ltd.

Figure 81. A TOF-MS for Characterising METAL Clusters

The beam of metal cluster particles pass through the source region of the TOF-MS where they are ionized and then orthogonally pulsed out into the mass spectrometer. Heavy masses such as metal clusters have low velocities and consequently low detection efficiencies. The effect is counteracted by floating the detector at a high voltage to post-accelerate the ions, which increases their velocity of impact and, consequently, the detection efficiency.

As a result of the basic layout of the TOF mass spectrometer and its high sensitivity it can be designed in a compact shape that can be manufactured in a portable form. A photograph of Kore’s MS-200 portable mass spectrometer is shown in figure 82. As extremely small quantities of sample are required, low powered, zero maintenance vacuum pumps are used The MS-200 employs electron impact ionization giving spectra that correspond well to established reference data. The vacuum system is kept permanently sealed and contained in the portable case. The vacuum is maintained by an ion pump and a non-evaporable getter pump which can cope with all gases. Sample gases are drawn though a heated inlet by a pump and enter the source through a concentrating membrane inlet.

Courtesy of Kore Technology Ltd.

Figure 82. The Portable MS-200 Mass Spectrometer

Detection limits are in the ppb range for most compounds. Analysis time are about one minute at the highest sensitivities. The general specifications of the mass spectrmeter are,

Sensitivity < 5 ppb in 10 seconds (Benzene)

Mass range 1 – 1000 amu

Dynamic Range 6 decades

Linearity better than 5%.

An excellent discussion on general organic mass spectrometry is given in Practical Organic Mass Spectrometry edited by Chapman [13].
