Chemical Ionization

The phenomenon of chemical ionization was first observed by Munson and Field [4] in 1966. If a large excess of a reagent gas is employed together with the sample (the partial pressure of the reagent gas is arranged to be about two orders of magnitude greater than that of the sample) an entirely different type of ionization takes place. The procedure involves first the ionization of a reagent gas such as methane in a simple electron impact ion source and as there is an excess of the reagent gas, the reagent molecules are preferentially ionized. The reagent ions then collide with the sample molecules and produce sample + reagent ions or in some cases protonated ions. The process is considered to be a gentle form of ionization, because the energy of the reagent ions never exceeds 5 electron volts including those reagent ions that are considered to have relatively high energies. Very little fragmentation takes place and parent ions + a proton or a molecule of the reagent gas is produced. The molecular weight of the parent ion is, thus, easily obtained. Little modification to the normal electron impact source is required and a conduit for supplying the reagent gas is all that is necessary.

The Spectrum produced by Chemical Ionization depends strongly on the nature of the reagent ion and, thus, different structural information can be obtained by choosing different reagent gases. This adds another degree of freedom in the operation of the mass spectrometer. The reagent ion can take a number of forms. Employing methane as the reagent ion the following reagent ions can be produced

CH4 CH4+, CH3+, CH2+

CH4+ + CH4 CH5+ + CH3

CH3+ + CH4 C2H4+ + H2

Other reactions can also occur that are not useful for ionizing the solute molecules but, in general, these are in the minority. The interaction of positively charged ions with the uncharged sample molecules can also occur in a number of ways, and the four most common are as follows:

  1. Proton transfer between the sample molecule and the reagent ion,

M + BH+ MH+ + B

2. There is an exchange of charge between the sample molecule and the reagent ion,

M + X+ M+ + X

  1. There is simple addition of the sample molecule to the reagent ion,

M + X+ MX+

  1. Finally there can be anion extraction

AB + X+ B+ + AX

As an example (CH5+) ions, which are formed when methane is used as the reagent gas, will react with a sample molecule largely by proton transfer e.g.,

M + CH5 MX+ + CH4

Some reagent gases produce more reactive ions than others, and, consequently, produce more fragmentation.

(A) Reagent Gas methane ; (B) Reagent Gas Isobutane.

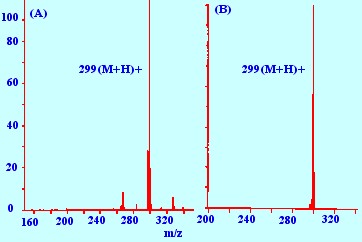

Figure 6. The Mass Spectrum of Methyl Stearate Produced by Chemical Ionization

Methane produces more active reagent ions than Isobutane , consequently, although methane ions produce a number of fragments by protonation, Isobutane , by a similar protonation process, will produce almost exclusively the protonated molecular ion. This is clearly demonstrated by the mass Spectrum of methyl stearate shown in figure 6. Spectrum (A) was produced by chemical ionization using methane as the reagent gas and exhibits fragments other than the protonated parent ion. In contrast, Spectrum (B) obtained using the reagent gas butane, exhibits the protonated molecular ion only.

The Chemical Ionization source is very similar in design to the ion impact source. Most mass spectrometer electron impact sources can perform the dual role, and also act as a Chemical Ionization source. Dual-action sources do not perform quite as well as dedicated electron impact sources when used in the electron impact mode, but the loss of ionization efficiency is certainly no more than 50%. Continuous use of a source for Chemical Ionization causes significant contamination that ultimately impairs the performance of the spectrometer. The build-up of residues from the Chemical Ionization process must be regularly baked out. A diagram of a typical gas inlet system for a Chemical Ionization source is shown in figure 7,

The diagram depicts a system that employs three different reagent gases but any number of reagent gases could be incorporated. The source pressure is normally held at 0.1–0.5 torr and a low-pressure regulator is employed to control the pressure to the required limits. The pressure regulator and valves can be solenoid operated, and, thus, automatically actuated by the mass spectrometer control-computer. As a result, it is easy to change from electron impact ionization to Chemical Ionization, as required. The sampling procedure is relatively simple as the sample enters the mass spectrometer as a vapor, in a gas stream, directly from the sample vaporizer.

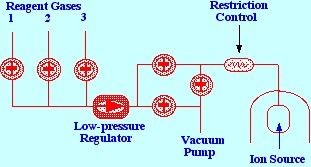

Figure 7. A Gas Inlet System for Chemical Ionization
