An Example of a Commercially Available IR spectrometer

Commercial instruments are available in an number of different arrangements Some are supplied with automatic samplers for the routine analysis of specific sample types, some with near infrared facilities (NIR) and some with microscopy attachments. An example of the Perkin Elmer Spectrum GX system with an associated AutoIMAGE microscope is shown in figure 25. Modern IR spectrometers have high sensitivity and stability and a huge range of options and upgrades providing multi-range and multi-beam facilities. Light spanning from the near infrared to the far infrared is available. Most instruments are modular in form and can cope with up to four equivalent output beams The Perkin Elmer model shown above has ten interchangeable beam splitters, ten different types of detector and alternative configurations include FT Raman, IR microscope and GC-IR interfaces.

Courtesy of the Perkin Elmer Corporation

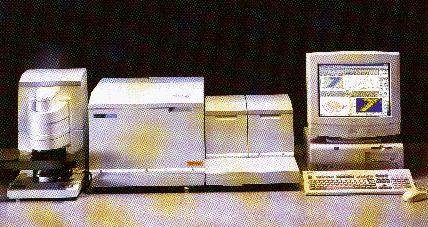

Figure 25. The Perkin Elmer Spectrum GX Infrared System with an AutoIMAGE microscope.

Spectrum GX Detectors Spectrum GX Beamsplitters

Courtesy of the Perkin Elmer Corporation

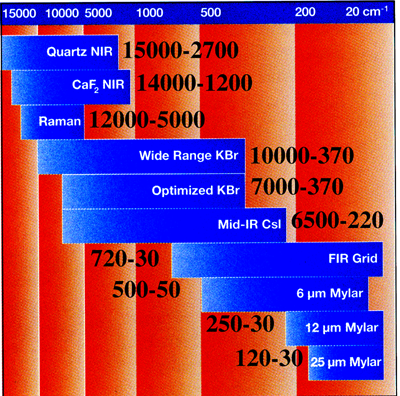

Figure 26. Spectrum Range of the GX Detectors and Beam Splitter

The properties of Beam Splitters and detectors are shown in figure 26. Most modern IR instruments have a range of programs to process the IR data collected, a number of which are used to improve sensitivity, resolution and repeatability. The effect of an algorithm that removes the effect of atmospheric absorption from the spectra in real time is shown in figure 27.

Courtesy of the Perkin Elmer Corporation

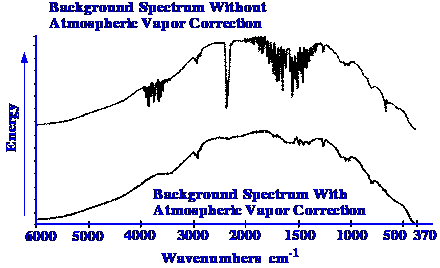

Figure 27. Effect of Atmospheric Vapour Correction Algorithm on the Background Spectrum

Courtesy of the Perkin Elmer Corporation

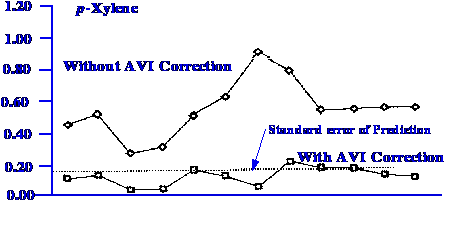

Figure 28. The AVI Routine Lowers The Standard Error of Prediction in Quantitative Analysis

Although most IR spectrometers employ a reference laser, the wave number calibration and the line shape is affected by differences in beam divergence and uniformity. In addition differences can occur between instruments when using different sampling techniques and accessories. The Perkin Elmer instrument has a patented Absolute Virtual Instrument (AVI) protocol that improves measurement consistency by standardizing data against small variations in band position and line shape. An example of its use is given in figure 28, which shows the use of AVI to lower the standard error of prediction (SEP) for xylene concentration in the quantitative analysis of liquid mixtures.

Other accessories available are the photo acoustic detector, The FT-IR microscope, the low volume light pipe GC/IR interface and the Near-TR-FT Raman. An example of a high sensitivity application where the Spectrum of a monolayer of cadmium arachidate adsorbed on the surface of silica is obtained by reflectance is shown in figure 29.

Courtesy of the Perkin Elmer Corporation

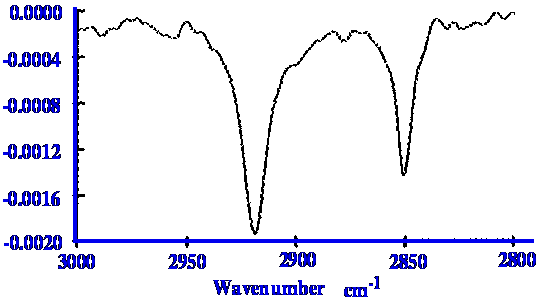

Figure 29. The IR Reflectance Spectrum of a Monolayer of cadmium Arachinate on silica
