The Fluorescence spectrometer in Practice

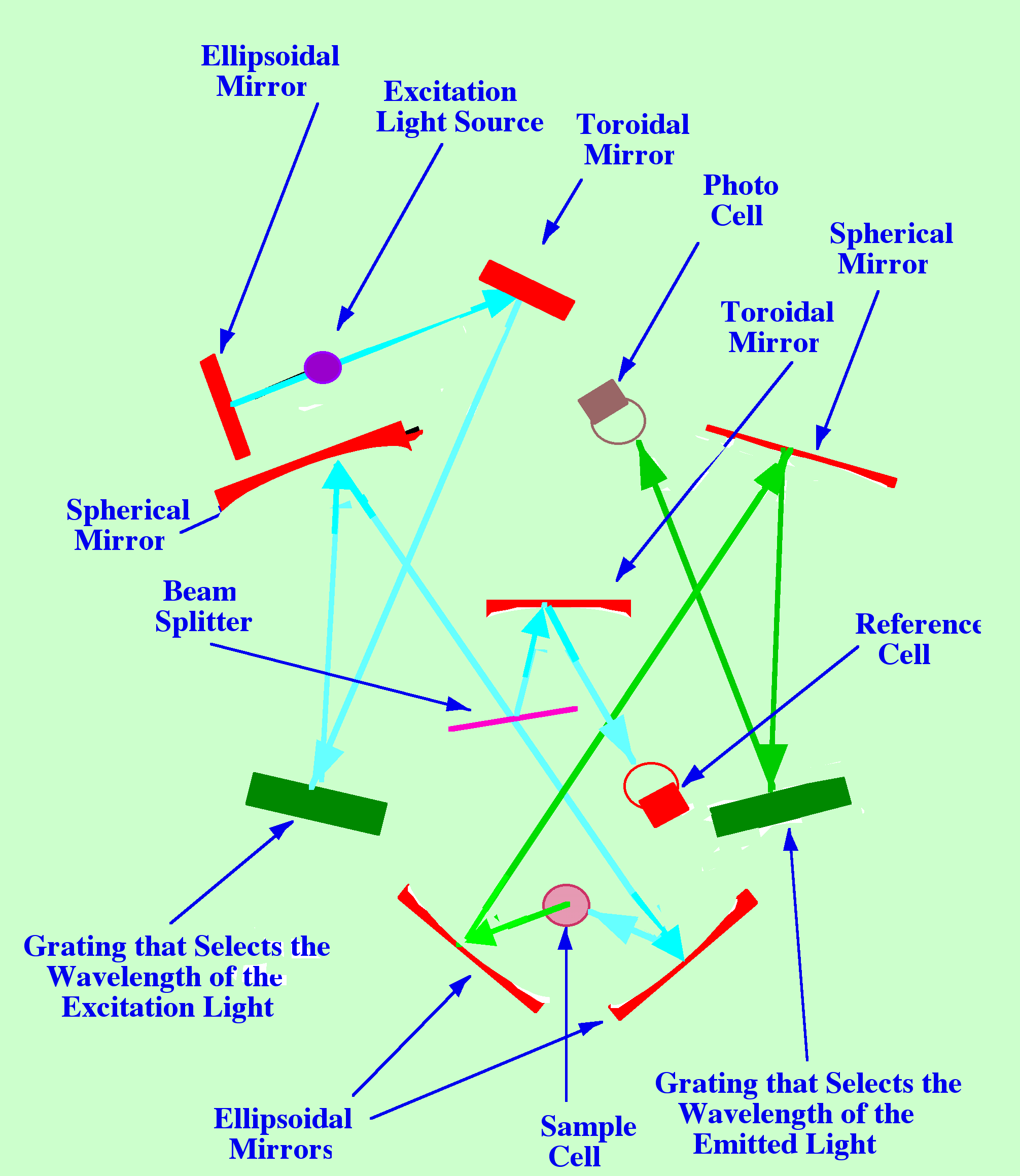

Figure 8 shows the layout of the basic Fluorescence spectrometer.

Courtesy of the Perkin Elmer Corporation

Figure 8. The Fluorescence spectrometer Detector

The excitation source (a deuterium or Xenon lamp) that emits UV Light over a wide range of wavelengths is situated at the focal point of an ellipsoidal mirror. This mirror is shown at the top left hand corner of the diagram. The consequent parallel beam of light falls onto a toroidal mirror that focuses it onto a Diffraction Grating. This is shown on the left-hand side of the diagram. Rotation of the grating allows the frequency (or wavelength) of the excitation light to be selected, or the whole Spectrum scanned which would provide an excitation spectra.

Light of the selected wavelength then passes first to a spherical mirror and then to an ellipsoidal mirror (shown at the base of the diagram) that focuses the light onto the sample. Between the spherical mirror and the ellipsoidal mirror, (in the centre of the diagram,) is a beam splitter that reflects a portion of the incident light onto another toroidal mirror. This toroidal mirror focuses the portion of incident light onto the reference photocell providing an output that is proportional to the strength of the incident light.

Fluorescent light from the cell is focused by an ellipsoidal mirror onto a spherical mirror (at the top right-hand side of the diagram). This spherical mirror focuses the fluorescent light onto a grating (situated at about the centre- right of the figure). This grating can select a specific wavelength of the fluorescent light to monitor, or scan the fluorescent light and provide an emission fluorescent Spectrum. Light from the grating passes to another photocell, which monitors its intensity. The instrument is rather complex and, as a result, rather expensive.

However, from the point of view of measuring Fluorescence spectra it is extremely versatile. Much less sample is required to produce useful Fluorescence spectra compared to UV spectra and, in general, Fluorescence spectra contain more fine detail and are, thus, more useful for solute identification where sample size is limited. It is seen that as both the wavelength of the excitation light and that of the fluorescent light can be exclusively selected, so the spectra are not liable to same errors as those of from the Diode Array as already discussed in the book on UV/viz spectroscopy.

The Fluorescence spectrometer can be used in a unique way in conjunction with the liquid chromatograph by programming the excitation wavelength and emission wavelength to provide the maximum sensitivity for each component of the mixture as it is eluted from the column. Thus, once the separation has been developed and retention times identified, the spectrometer is programmed to monitor each peak at the optimum excitation and Fluorescence wavelengths. This procedure provides the ultimate in sensitivity when using Fluorescence detection.

The principle of optimizing both the excitation and emission light wavelengths to obtain maximum sensitivity, however, can become quite complex as shown by the separation of some priority pollutants carried out on an early PE LC/FL tandem instrument and depicted in figure 9. The separation was carried out on a column 25 cm long, 4.6 mm in diameter, and packed with a C18 reversed phase. The mobile phase was programmed from a 93% acetonitrile, 7% water mixture to 99% acetonitrile, and 1% water mixture over a period of 30 minutes. The gradient was linear and the flow rate was 1.3 ml/min.

Table 2 The Fluorescence Excitation and emission Program



Time - seconds wavelength of Excitation light wavelength of emitted light
0 280 nm 340 nm
220 290 nm 320 nm
340 250 nm 385 nm
510 260 nm 385 nm
720 265 nm 420 nm
1050 290 nm 430 nm
1620 300 nm 500 nm




1 Naphthalene

9 Chrysene

2 Acenaphthene

10 Benzo(b)fluoranthene

3 Fluorene

11 Benzo(k)fluoranthene

4 Phenanthrene

12 Benzo(a)pyrene

5 Anthracene

13 Dibenzo(a,h)anthracene

6 Fluoranthene

14 Benzo(ghi)perylene

7 Pyrene

15 Indeno(123-cd)pyrene

8 Benz(a)anthracene

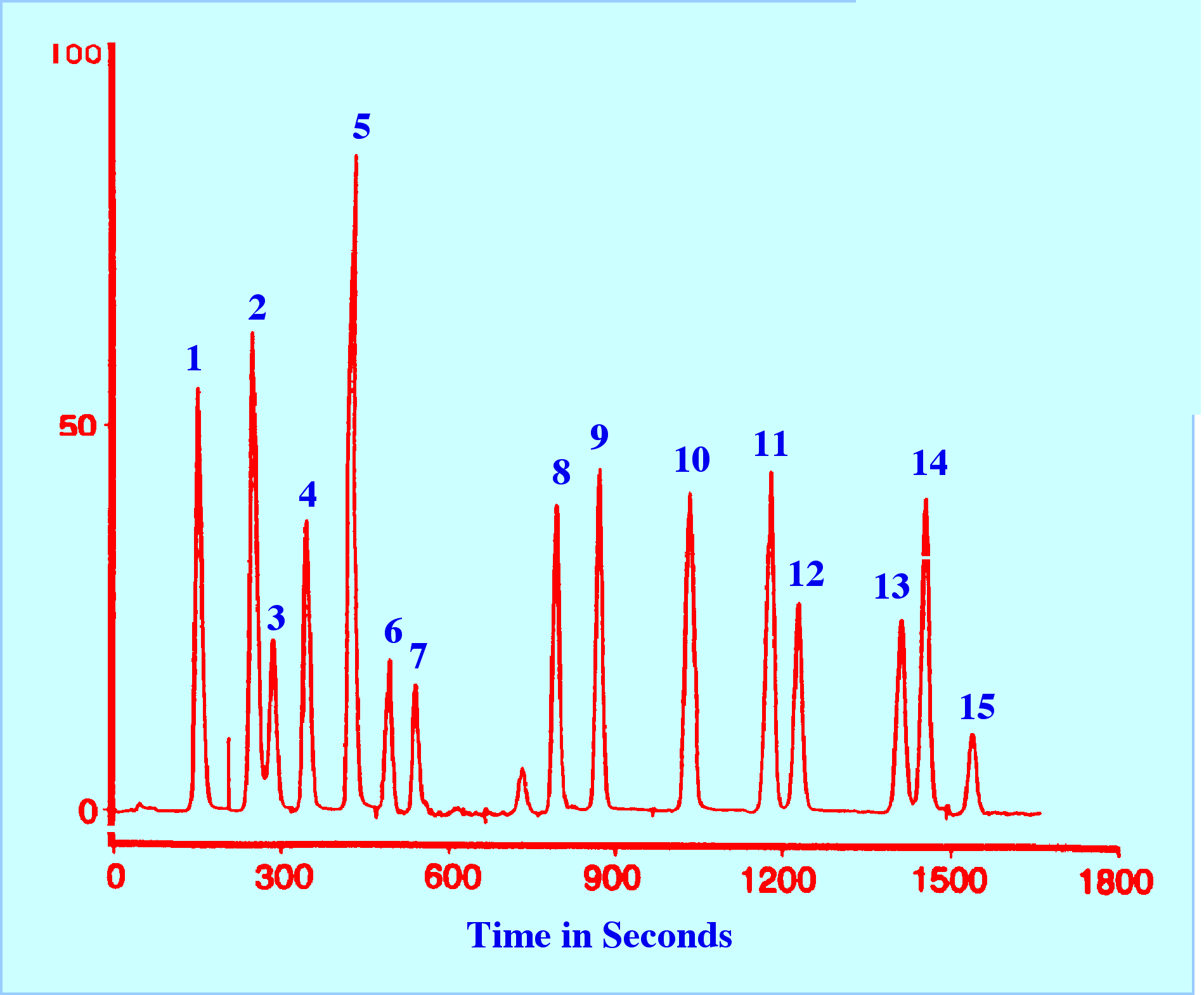

Figure 9. Separation of a Series of Priority Pollutants with Programmed Fluorescence Detection

All the solutes are separated and the compounds, numbering from the left, are given in the figure 9. The separation illustrates the clever use of wavelength programming to obtain the maximum sensitivity. The program is shown in Table 2.
