Polarization Effects in Raman Spectroscopy

If examined with a polarimeter, some lines of the scattered radiation (not all) may be polarized and, furthermore, they will be polarized to different extents. The reason for this is not immediately obvious and can be best explained using the following simple case of Raman scattering. Consider a molecule, the polarizable ellipsoid of which is spherical (typified by the molecule of methane ) which is depicted in figure 13. The spherical form of a polarizable ellipsoid is given the term spherical top.

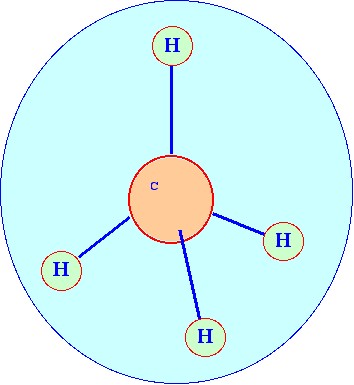

Figure 13. The Spherical Top Molecule methane .

There are various forms of vibration that methane can take and as the polarizable ellipsoid, in this case is spherical, one form of the vibration (known as the symmetric stretch) is where all four C-H bond distances increase and decrease in phase. Thus, the ellipsoid shape remains spherical (for obvious reasons the frequency of these vibrations is sometimes referred to as the ‘breathing frequency’) and the molecule in this form will plainly be Raman active throughout the vibration. Consider a beam of unpolarized radiation travelling in the direction of the (x) axis falling on the molecule. Since the polarizable ellipsoid is a sphere it follows that it is equally polarizable in all directions and any induced dipole will be along the greatest electric vector of the radiation (i.e. along the (xy) plane). This situation is depicted in figure 14. In figure 14, two incident beams are shown striking the molecule but it should be noted that induced dipole is in the (xy) plane for both. A non-polarized beam will contain components having all possible values of (α)

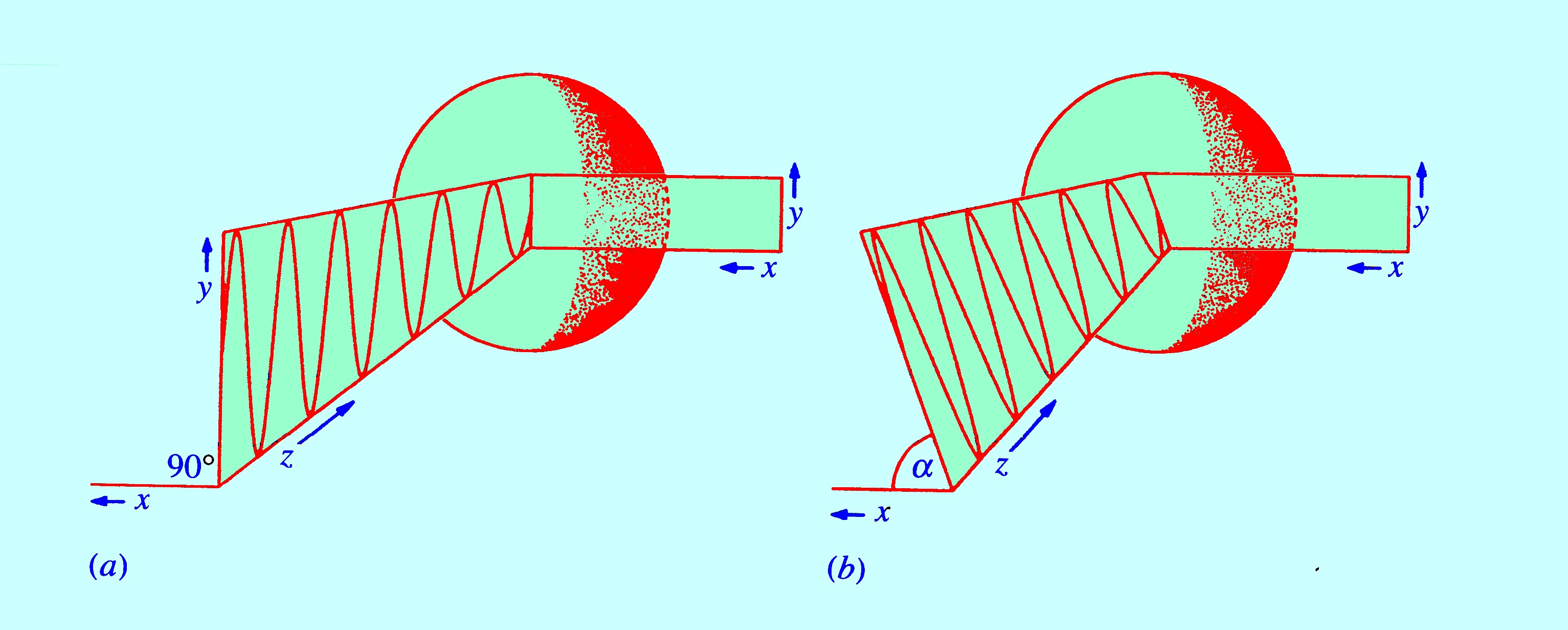

Figure 14. Raman Scattering from a ‘Spherical Top’ Molecule Vibrating at its Breathing Frequency.

As the induced dipole lies in the (xy) plane the oscillating dipole will emit radiation that is plane polarized. Thus, for the breathing frequency the Raman line will be completely polarized. For any other type of vibration the polarization ellipsoid will not be spherical and the axis will be randomly oriented and, thus, the scattered radiation will no longer be polarized. This phenomenon can be observed and measured employing the apparatus shown in figure 15.

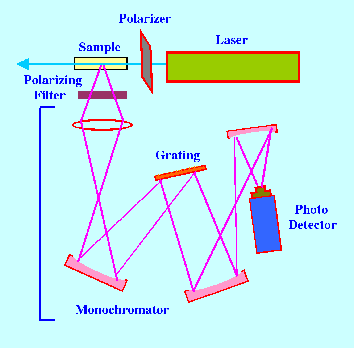

Figure 13. A Raman spectrometer Fitted with Polarization Facilities.

The apparatus is very similar to the Raman instrument previously described except that a polarizing unit is placed in line with the laser radiation to produce light polarized in the plane of the paper. In addition a polarizing filter is placed in line with the scattered light that can pass either light polarized in the plane of the paper or set at right angles and only accept light that is not polarized in the plane of the paper. As a consequence, in the first setting the total strength of the radiation polarized in the plane of the paper plus all other scattered light (IT) will be measured. In the second setting only scattered light that is not polarized in the plane of the paper (IS) will be measured. Thus, taking the previous example, the proportion of scattered light that arises form the breathing frequency (α) will be given by,

α = IS/IT

and this will be a measure of the degree of polarization of that line. This principal of identifying and measuring certain types of energy can be extended to other substances and those interested and requiring further information the books listed in the references are recommended.

Raman techniques are recommended over infrared techniques for vibrational measurements as the scattered light occurs in the UV and Visible region. Consequently, simple construction materials such as quartz and glass can be used and the more difficult materials such as sodium chloride and other IR transparent materials are avoided. In addition water strongly absorbs in the IR whereas water only produce weak Raman scattering and so aqueous solutions can be easily examined. As result Raman Spectroscopy lends it self to the examination of biological materials.

An example of the application of Raman Spectroscopy is given by the Spectrum of myoglobin depicted in figures 14 and 15.

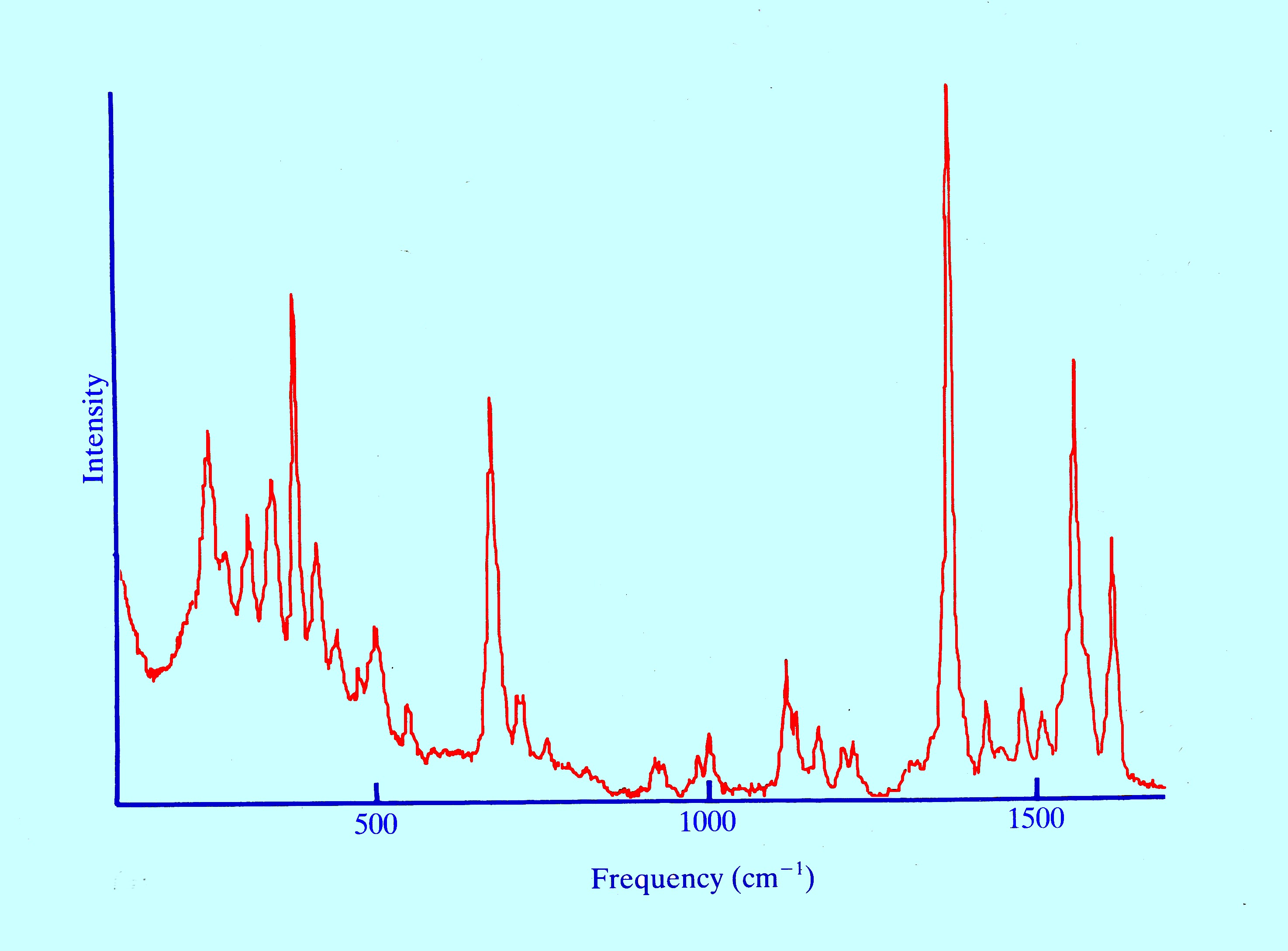

Figure 14. The Raman Spectrum of myoglobin .

There are a number of Raman modes exhibited arising mostly from the protein chains. myoglobin contains iron that is capable of reversibly bonding oxygen and carbon dioxide but more strongly carbon monoxide. Consequently myobloblin can carry gasses around the body for biosynthetic purposes and carry waste gases away. It follows that myoglobin is essential in natural muscle function. It is also responsible for the toxic properties of carbon monoxide. Details of the iron-carbon stretching region for myoglobin bound to carbon monoxide (between 400 and 560 cm-1) are shown in figure 15.

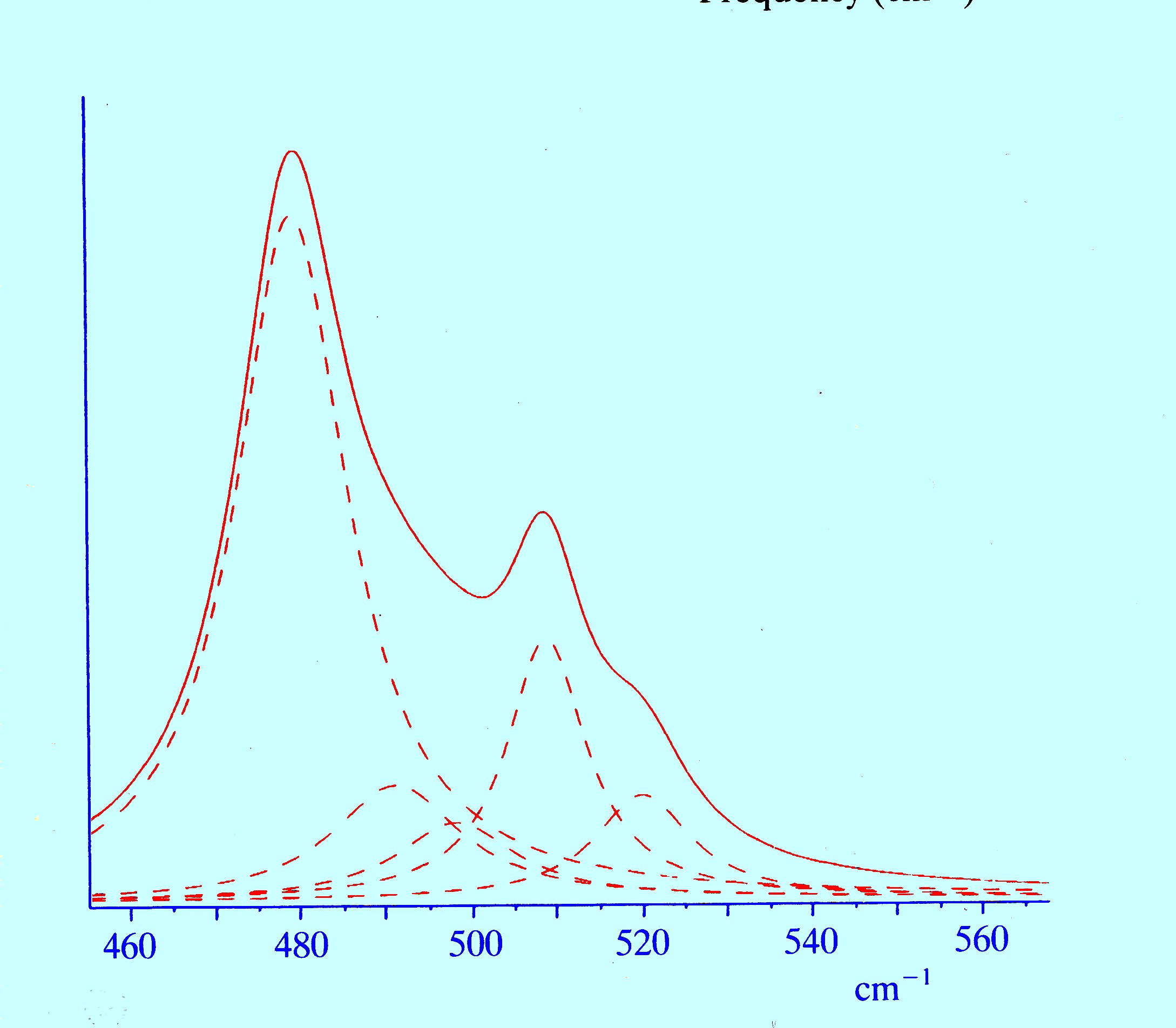

Figure 15. Details of the Iron-Carbon Stretching Region for myoglobin bound to Carbon Monoxide

The dotted curves are the result of the computer deconvolution of the main envelope and exposes the presence of several peaks which indicate that carbon monoxide may exist in different forms in different myoglobin molecules.
