Introduction to Spectroscopy

Spectroscopy is the study of the absorption and emission of electromagnetic radiation by matter. The electromagnetic radiation of analytical interest ranges from γ rays that have a frequency of about 3x1018 and wavelength of about 10 pm, to the radio waves used in NMR having a frequency of about of 3x106 and a wavelength of about10 m. This range encompasses UV and visible spectroscopy, Fluorescence spectroscopy, infrared spectroscopy, Raman Spectroscopy, ESR (electron spin resonance spectroscopy) and NMR (nuclear magnetic resonance spectroscopy). There is another very important, so- called analytical spectroscopic technique, called mass spectroscopy (MS), which is somewhat an anomaly, as it does not deal with the adsorption or emission of electromagnetic radiation but the separation of ions of different masses. In its early development, the resolution of different ion masses was included as a spectroscopic technique largely because the curves relating ion intensity to ion mass bore some graphical similarities to true electromagnetic wave absorption spectra.

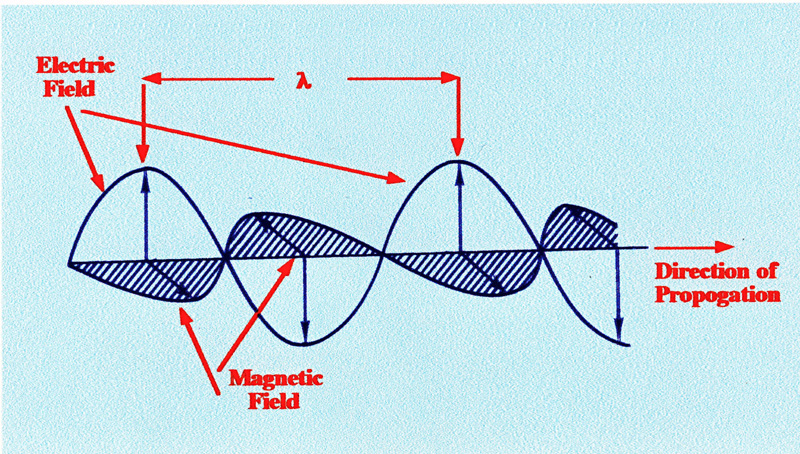

An electromagnetic wave consists of a sinusoidal electrostatic field acting at right angles to, and in phase with, a sinusoidal magnetic field. A diagram of an electromagnetic wave is shown in figure 1.

Figure 1 An electromagnetic Wave

It is the electric vector that has the major effect on matter; it is the electric vector that activates the cells in the retina of the eye and provides sight; it is the same vector that activates the light sensitive surface of a photoelectric cell, which then responds to the intensity of light falling on it. All electromagnetic radiation travels at the same velocity (c) viz., 2.997925 x 108 ms-1 which can be approximated to 3 x 108 m/s. electromagnetic radiation has two characteristics, its frequency and its wavelength which are related by the following equation,

(1)

where ((λ) is the wavelength of the electromagnetic wave, and ((ν) is the frequency of the electromagnetic wave.

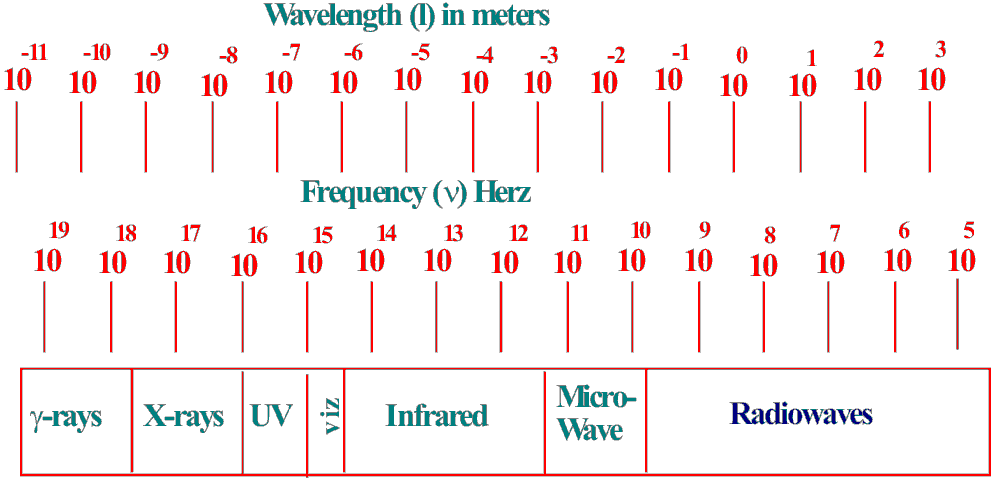

The relationship between wavelength and frequency for the different regions is shown in figure 2.

Figure 2 The Relationship between wavelength and Frequency and the Different Regions of the electromagnetic Spectrum

The regions given in figure 2 does not help the analytical chemist much as it does not indicate how the different frequencies or wavelengths are related to the physical chemical processes with which they are associated. This relationship can be explained as follows.

γ Rays-These rays, that have frequencies lying between ca 3x1018 and 3x1020 Herz (100pm-1pm wavelength), are capable of exciting atomic nuclei. γ Ray spectroscopy is not normally used in general analytical work and the energies involved amount to 109-1011 joules per gram atom.
X-Rays - These rays, having frequencies lying between ca 3x1016 and 3x1018 Herz (10nm-100pm wavelength), can excite inner electronic transitions in an atom and are used extensively in X-ray crystallography. Inner electronic transitions involve energies that may be as great as ten thousand joules per gram atom
Ultra Violet and Visible Radiation - Ultra violet and Visible radiation, having frequencies lying between ca 3x1014 and 3x1016 Herz (1μ-10nm wavelength), can excite outer electronic vibrations (valence electrons) in atoms and absorption or emission of light of this wavelength range is commonly used in analytical techniques to identify aromatic compounds, olefins and substances having one or more double bonds and unshared electrons. The excitation of a valence electron involves the movement of electronic charges in the molecule from one energy level to another. The energies involved in such transitions amount to some hundreds of kilojoules per mole. Absorption of radiation in this frequency range is also used in certain types of sensing devices that are employed in chromatographic detectors.
Infrared and Microwave Radiation - Infrared and part of the microwave band, having frequencies lying between ca 3x1010 and 3x1014 Herz (100μm-1μm wavelength), can excite molecular vibrations and rotations. Absorption of electromagnetic radiation in this wavelength range can be used to confirm the identity of specific compounds and to identify explicit chemical groups in a molecular structure.
Short Wave Radio Radiation -Short wave radio radiation, having frequencies lying between ca 3x108 and 3x1010 Herz is employed in electron spin resonance studies.
Medium Wave Radio Radiation - Medium wave radio radiation, having frequencies lying between ca 3x106 and 3x108 Herz is used in nuclear magnetic resonance studies.


Einstein, Planck and Bohr suggested that electromagnetic radiation could also be considered as a stream of particles in discrete energy packets called quanta and the energy (E) of each particle of frequency (n) was given by,
E = hν (2)
where (h) is Planck’s Constant = 6.62 x 10-34 Js = 6.62 x10-27 ergs/sec

Using equation (2), the energy associated with any transition whether electronic, rotational or vibrational, induced by radiation of a specific frequency can be calculated.
