When an electron is raised to a higher orbital the direction of the electron spin is not changed. As most molecules have an even number of electrons and these are arranged in pairs having opposite spin, the elevation of one electron to a higher orbit does not disturb this balance. However, it is possible for the spin of an electron to change direction on excitation and, as a consequence will then not be paired. Thus, the molecule will have two independent electrons of the same spin in different orbits.

Quantum theory predicts that such a molecule can exist in three forms, each form having very slightly different energy; a molecule in this condition is said to be in a triplet state. The change of singlet state to a triplet state is called intersystem crossing and can occur when the lowest vibrational level of the excited single state has the same energy level as an upper vibrational level of the triplet state.

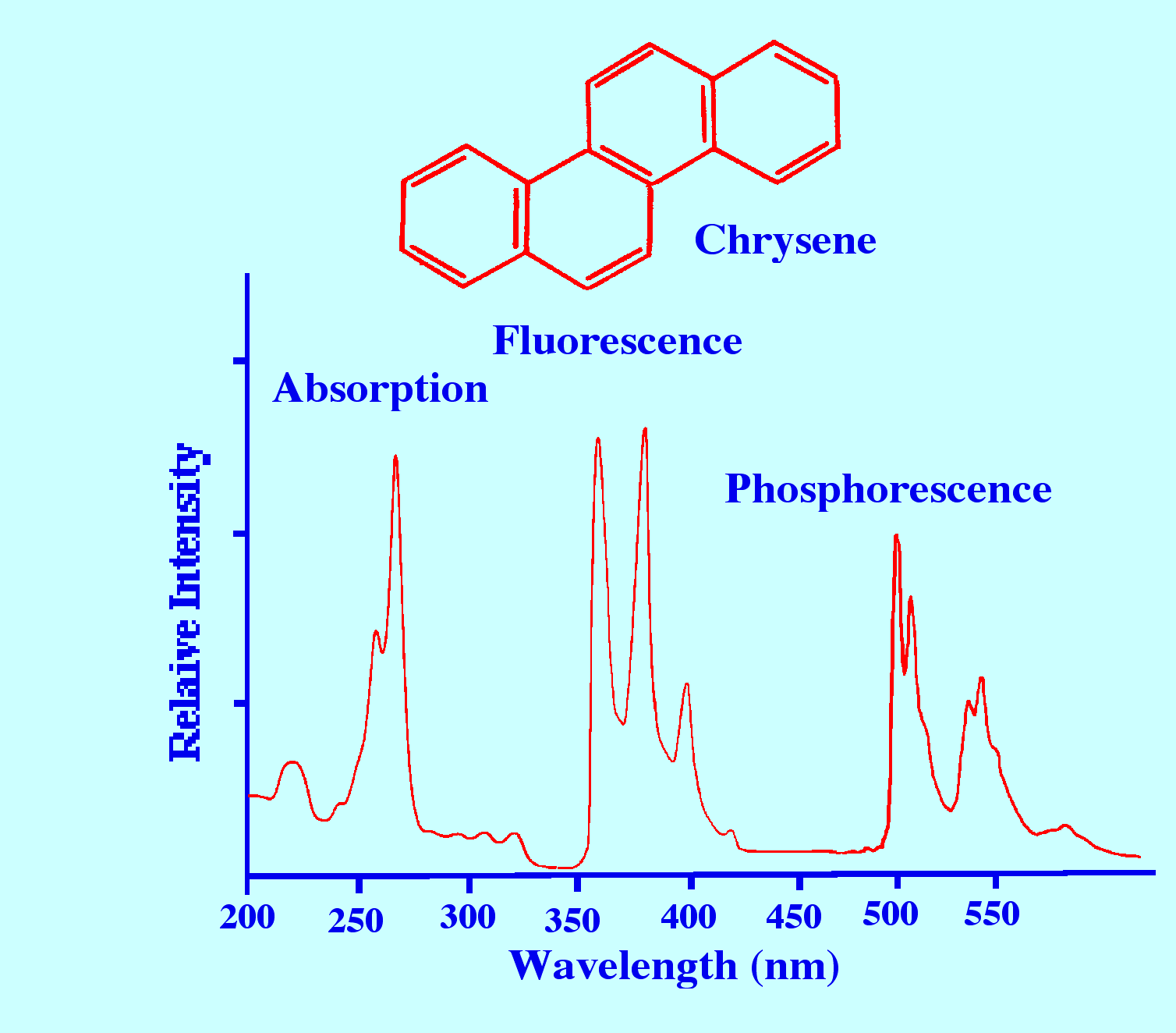

Figure 3. Relative Position of the Adsorption, Fluorescence and Phosphorescence Bands for Chrysene

The transition of an electron from an excited singlet state to a ground state occurs readily (usually within 10-9-10-6 sec) with emission of a photon of light and this, as already defined, is called Fluorescence. However, the transition of an electron from a triplet state to a ground state is much more difficult and may take a much longer time (ca 10-4-102sec). Thus, light may be emitted long after the excitation light has been removed. This persistent emission of light is called Phosphorescence. The relative position of the adsorption, Fluorescence and Phosphorescence bands for Chrysene are shown in figure 3. A molecule in a triple state has a lower energy than it would have in its singlet state, thus when returning to its ground state there is a lower energy change and light is emitted at a lower energy (longer wavelength) than it would from the singlet state.
