The FTIR Raman spectrometer System

The modern Raman spectrometer is based on the use of a laser light source combined with a FTIR spectrometer. The laser light source must generate light of a suitable wavelength that does not produce significant Fluorescence and, consequently, as already discussed, the excitation wavelength is chosen to be about 1 micron. A diagram of the Raman attachment that is designed to fit a standard FTIR spectrometer is shown in figure 6.

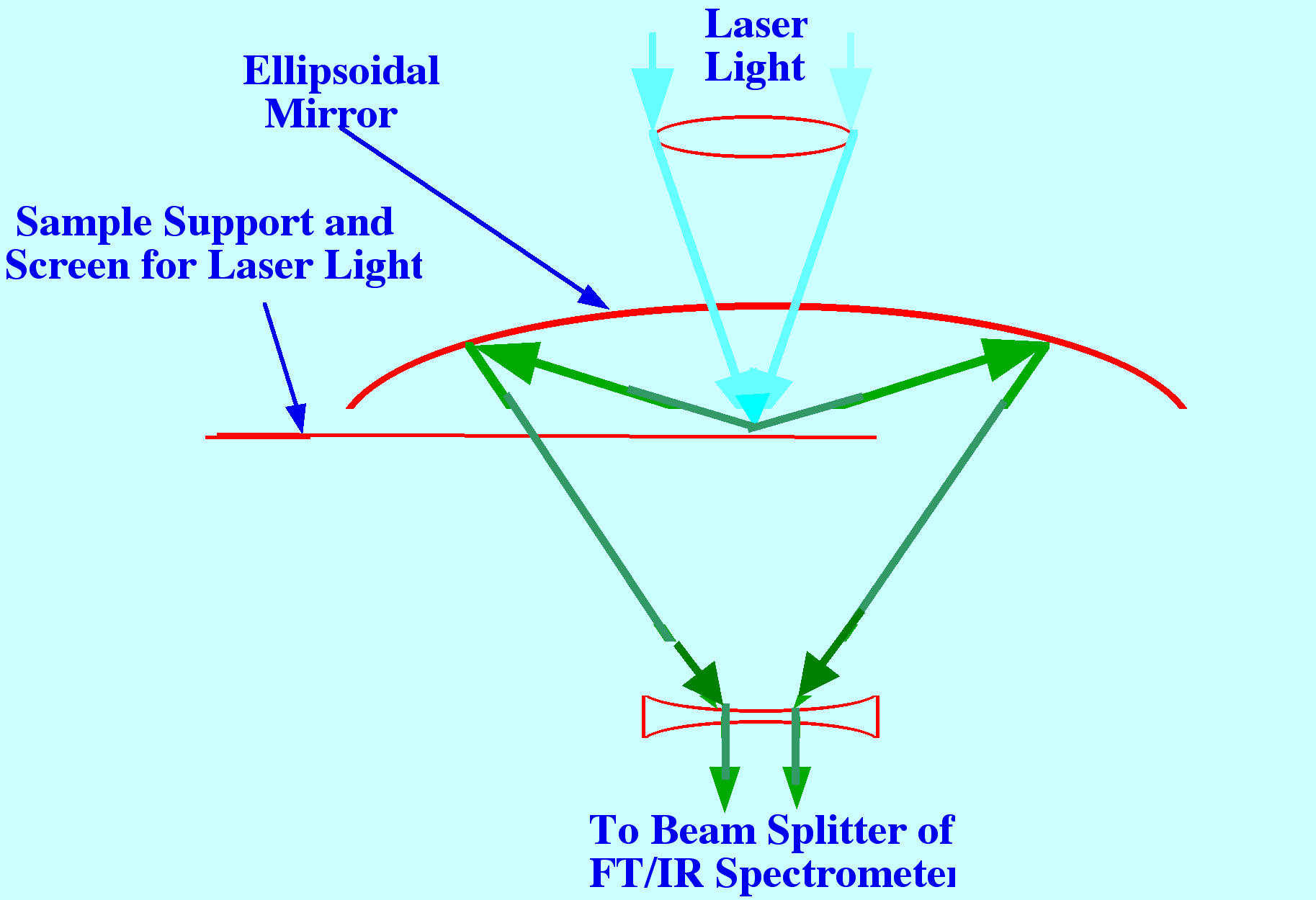

Figure 6. The Optical Arrangement for Measuring Raman Spectra

Light from a near infrared laser source is focused onto the solid sample that is held on a support. The support also acts as a screen to prevent laser light directly entering the optical system of the FTIR spectrometer. The scattered light is then focused by means of a large ellipsoidal mirror and a collimating lens, so that it enters the FTIR optical system and strikes the Beam Splitter. From there on the optical system is very similar to that of the FTIR spectrometer. A commercially designed Raman FTIR system that provides the scattered light for subsequent resolution is shown in diagrammatic form in figure 7.


Figure 7. A Commercially Designed Raman FTIR System

Light from a suitable laser source is collimated onto a Diffraction Grating that selects the light of the wavelength to be used to produce Raman scattering (if a diode laser is employed this will not be required). Some of the light is focused onto a secondary photo sensor, the output of which is used to indicate the activity of the laser.

Light of the selected wavelength is directed by means of a mirror onto a reflecting system that also acts as a notch filter to remove any light of extraneous wavelength. The reflected light is focused onto the sample that generates the scattered light. The scattered light is directed back through the optical system and through a second notch filter that removes any traces of the incident light. The scattered light is collimated and is then ready to be resolved on a suitable Diffraction Grating to produce the required Raman Spectrum.

It should be noted that in order to render figure 7 virtually self explanatory, the incident excitation light is coloured vermillion and the scattered light is depicted in light blue. It is seen that the system can be constructed in a fairly compact form and be supplied as an additional module to a normal Fourier transform IR instrument.
