Reflectance Methods

Reflectance techniques are used for those samples where IR transmission is difficult or impossible. There are two types of reflectance measurements, attenuated total reflectance where and internal reflectance cell is employed and External Reflectance where the IR beam is reflected directly from the sample surface.

Attenuated Total Reflectance Spectroscopy

Attenuated total reflectance employs total internal reflection as shown in figure 18. A light beam entering a crystal will undergo complete internal reflection if the angle of incidence is greater than the critical angle, which will be a function of the refractive indices of the two surfaces.

On striking the surface the beam will penetrate the surface slightly and, if the substance absorbs light at the wavelength of the incident light, some of the light will be absorbed. The intensity of the attenuated radiation can then be plotted against the wavelength of the incident light and an absorption Spectrum will be obtained.

The depth of penetration (dp) will be a function of the wavelength (λ), the refractive index of the crystal, and the angle of incident radiation (ω) and is given by the following equation,

(6)

where (n1) and (n2) are the refractive Indices of the sample and the crystal respectively.

Typical materials that can be used as crystals for total reflectance spectroscopy are zinc selenide (RI 2.4, 20000-500 cm-1), germanium (RI 4.0, 5000-550 cm-1) and thallium /iodide (RI 2.4, 17000-250 cm-1).

The common factors between all the materials are that they are relatively insoluble in water and have high refractive indices.

Figure 18. An Attenuated Total Reflectance Cell

Multiple Internal Reflectance

Multiple internal reflectance techniques produce more intense spectra as a result of multiple reflections.

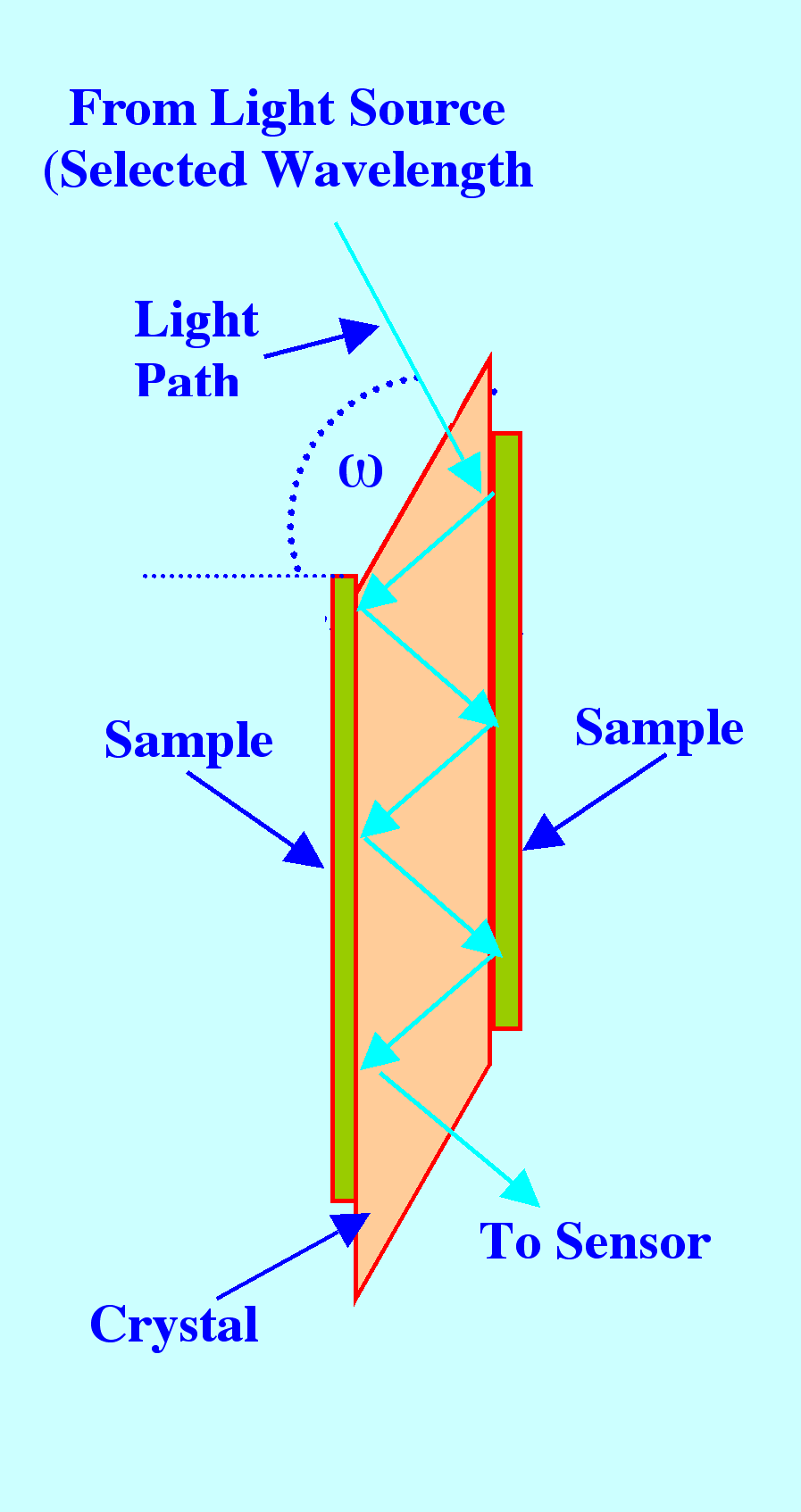

Figure 19. Multiple Internal Reflectance Cell

In contrast to attenuated total reflectance that usually employs a prism, Multiple Internal Reflectance techniques employ specially shaped crystals that allow multiple reflections. Such a crystal is shown in figure 19. Such crystals may produce as many as 25 multiple reflections.

External Reflectance Techniques

If radiation is focused on the external surface of a sample two forms of reflectance can occur. The first is specular reflectance and the second diffuse reflectance. Both forms of reflectance can be used to produce spectra from a sample. In order to have effective and useful reflectance, the surface must be reflective or be attached to a reflective backing.

This technique has been applied to the examination of surface coatings such as paints polymers and metal surface coatings.

Specular Reflectance

If the reflected light from the surface is measured where the angle of reflection equals the angle of incidence then Specular Reflectance is said to occur. The amount of reflected light in Specular Reflectance is a function of the angle of incidence, the refractive index of the sample, the surface roughness and the adsorption properties of the sample. If grazing angles of incidence are employed, this, in effect, increases the path length through the coating or surface and increases the sensitivity. Grazing angles of up to 85o can be employed. If the coating on the reflective surface is one micron or more thick, then the incident and reflective angles are usually about 30o.
