Synchrotron Sources for Raman Spectrometry

The synchrotron is a relatively novel source of IR radiation. The basic principle of the synchotron is depicted in figure 8.

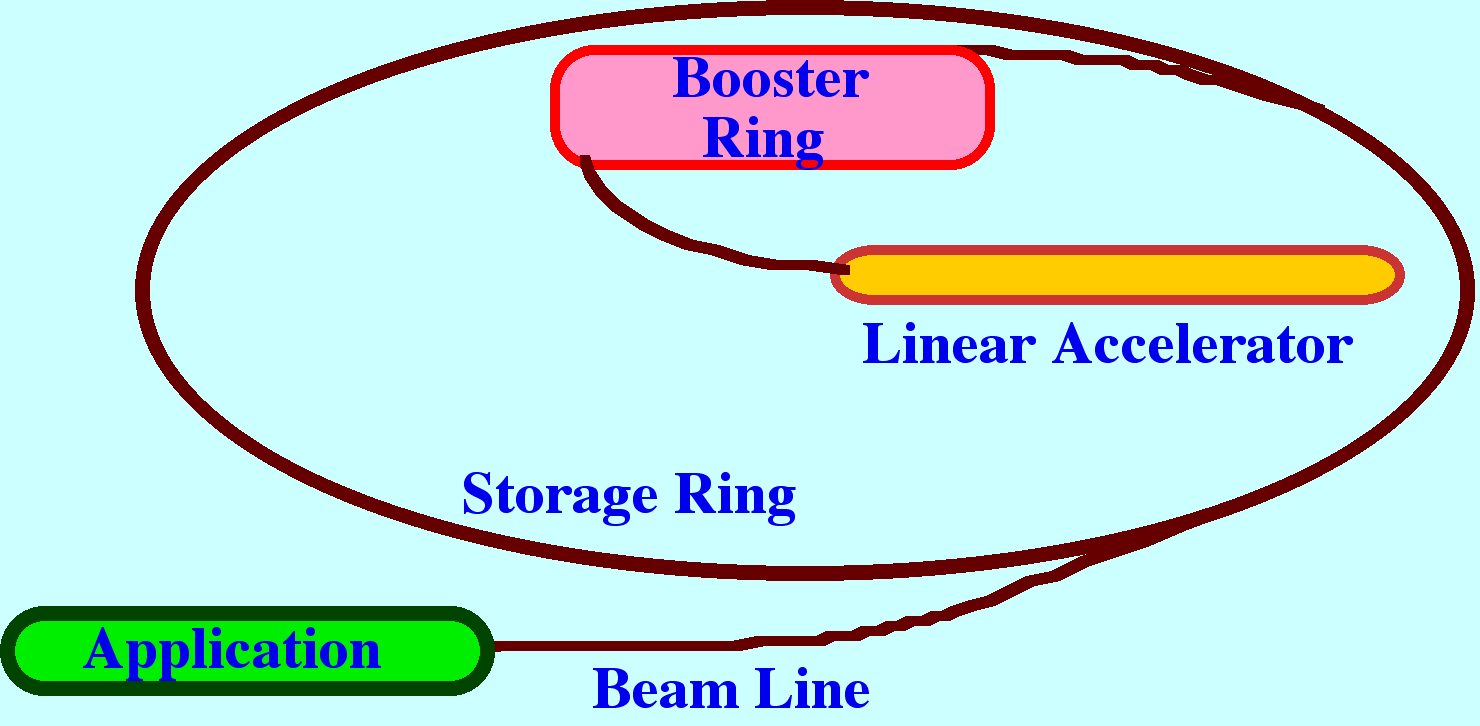

Figure 8. Diagram of a Synchrotron System

A beam of electrons is generated in a linear accelerator that then enters a ‘booster ring’ where the electrons are accelerated to close to the speed of light. The electrons are then injected into a larger ring (the storage ring) where the electrons continue to circulate at relativistic velocities. Any charged particle, travelling at these velocities and traversing a curved path will emit intense broad-band electromagnetic radiation across the whole Spectrum from X-rays to the far infrared. Modern synchrotons utilize magnetic devices called wrigglers”, and “undulators” round the ring to increase the intensity of the radiation. The radiation is emitted tangentially to the electron path and so any port incorporated in the ring will provide an intense radiation beam. The beam is then sent through an optical system where the wavelengths of interest are separated and made available for experiments. Most experiments carried out with radiation from a sychrotron involve X-rays but some work on infrared has been carried out. Time can be rented from the synchrotron establishment but it may be many years before such facilities become generally available. Such a source does hold promise for vastly improved results from Raman Spectroscopy. In figure 9 the performance of a typical FT-Raman instrument is shown by the spectra of indene.

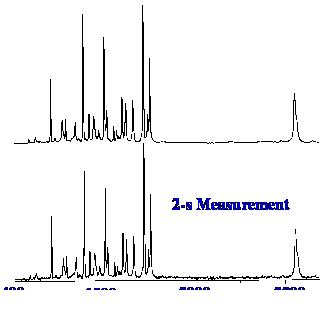

Figure9. FT-Raman Spectra of Indene

The excitation energy was 1 W and data was acquired for two seconds in the lower Spectrum and for thirty seconds in the upper Spectrum. The two spectra appear identical which demonstrates that no thermal degradation occurred with the extended exposure to radiation for thirty seconds. The majority of samples can cope with high intensity near-IR without decomposition as the absorption is involved with combinations of vibrational modes and overtones and, therefore, are rather weak.

The main advantage of working with near-infrared radiation is the lack of Fluorescence that can seriously interfere with the quality of the resulting Spectrum. This is clearly demonstrated by the two spectra of anthracene obtained employing radiation in the Visible region (5145Å) and in the near-infra red (1.06μm) shown in figure 10. The upper Spectrum produced by irradiation with Visible light shows the spectra superimposed on a broad ‘hump’ of Fluorescence almost completely obscuring the Raman Spectrum, whereas the lower Spectrum obtained by near-infrared irradiation gives a clean, virtually Fluorescence-free Spectrum.

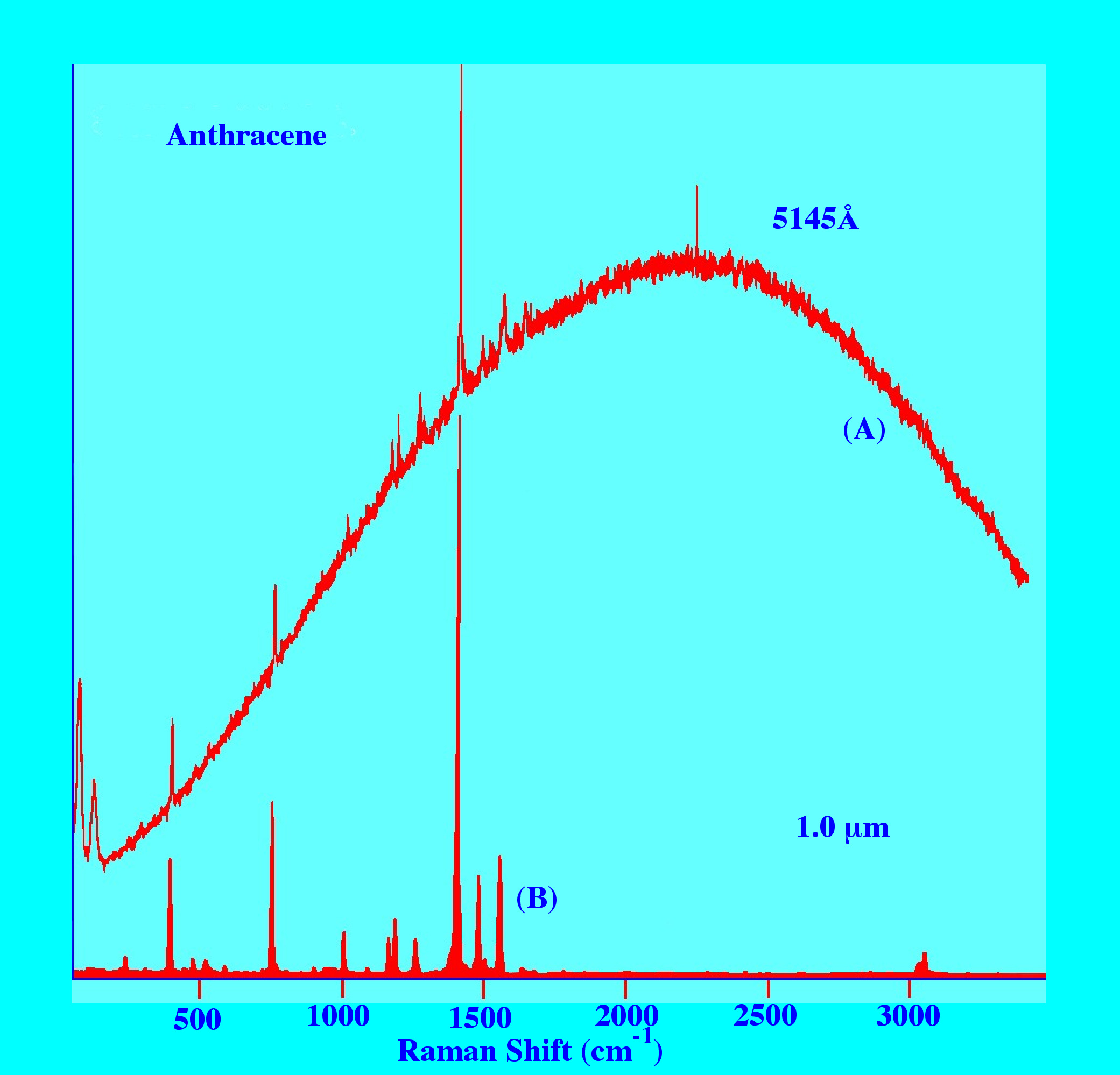

Figure 10. Raman Spectra of Anthracene obtained by Irradiation with Visible and Near-Infrared Radiation

Admittedly, this may well be one of the worst-case ‘scenarios’; nevertheless the spectra clearly demonstrate the advantages of employing near-infrared radiation in the production of Raman spectra. A possibly even more impressive advantage of the use of the near infrared for the excitation to eliminate Fluorescence is shown in figure 11.

In this case the Raman spectra is being taken of a strongly fluorescent material but employing radiation of 106 mm as the radiation with a 60 second measurement time a Raman Spectrum of a useful form could still be obtained.

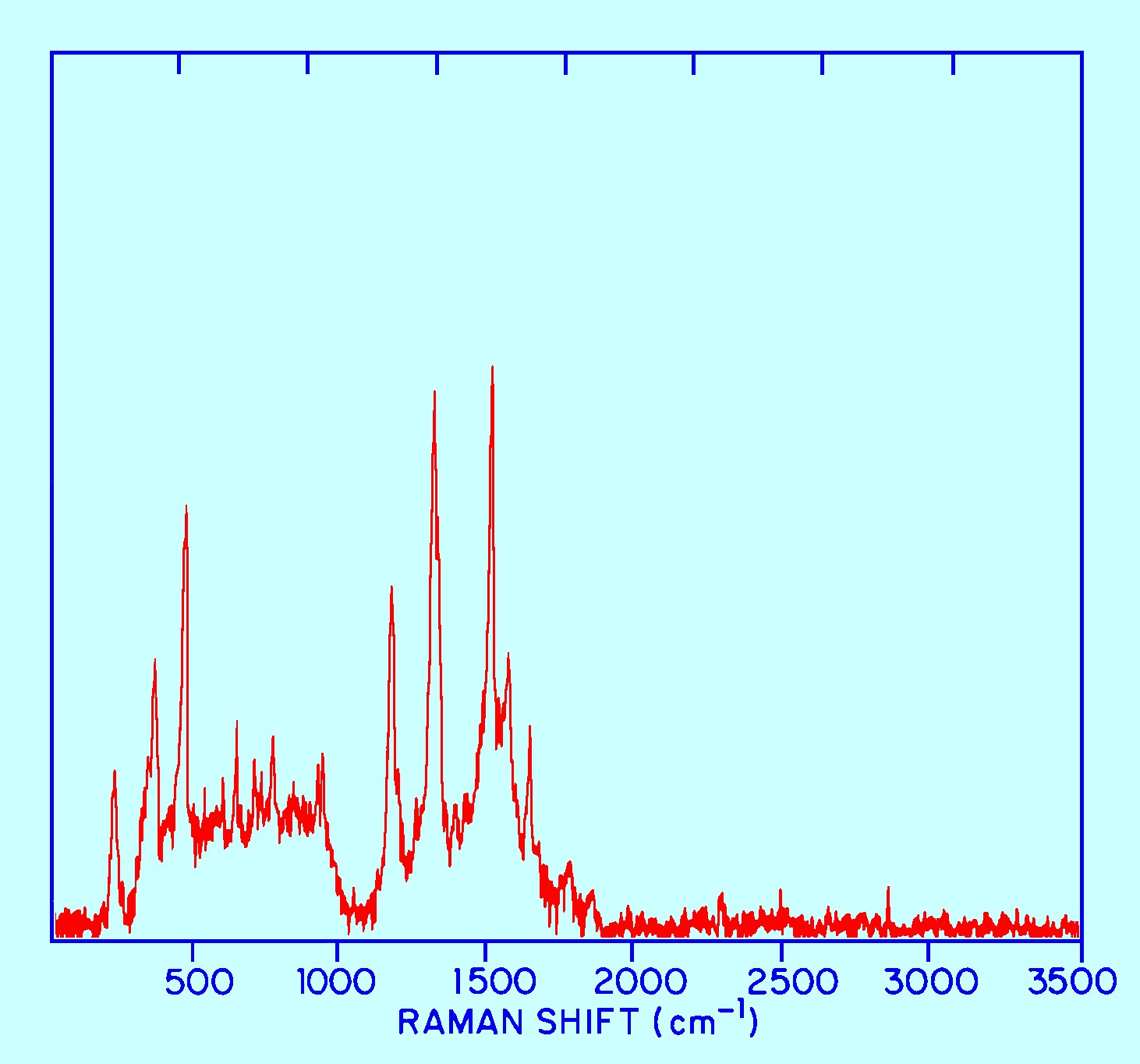

Figure 11. FT-Raman Spectrum of a Fluorescein (Rhodamine 6G)

Employing near-infrared frequencies as the exciting radiation in conjunction with FTIR techniques provides yet another advantage. The ease and accuracy of spectra addition and subtraction employing the FTRI system used in conjunction with spectra that have extremely low Fluorescence interference allows solvent spectra subtraction techniques to be extremely accurate.

Spectrum A obtained from a 20% solution of toluene in benzene ,

Spectrum B obtained from pure toluene.

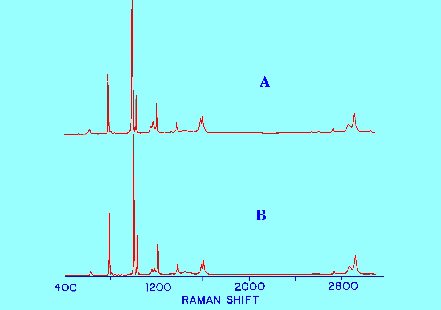

>Figure 12. Spectra Obtained from Toluene as a Solution in benzene and from Pure Toluene.

As both spectra are (in a sense) extremely ‘pure’, subtracting the solvent Spectrum from the mixed Spectrum provides a very accurate Spectrum of the solute alone that can be used with confidence for both identification purposes and also for structure elucidation.


The spectra given in figure 12 clearly demonstrate this advantage. The Spectrum obtained after subtracting the Spectrum of the solvent from the Spectrum of the solution of the solute in the solvent is virtually identical to the Spectrum obtained from a sample of pure toluene. In fact the difference is almost indistinguishable.
