Ideally, solvents used for dissolving a sample for NMR examination should not contain the element that is being examined. Consequently, if proton NMR was being employed then carbon tetrachloride or carbon disulphide would be appropriate solvents. Unfortunately, these are exclusively dispersive solvents in which polar solutes are relatively insoluble. An alternative a solvent that had only one single proton absorption might be useful and such solvents would include chloroform, acetone, benzene, dimethylsuphoxide , water, dioxane methylenechloride and trifluoroacetic acid etc. Even better, the deuterated isomers of the above solvents could be used but deuterated solvents can be somewhat expensive.

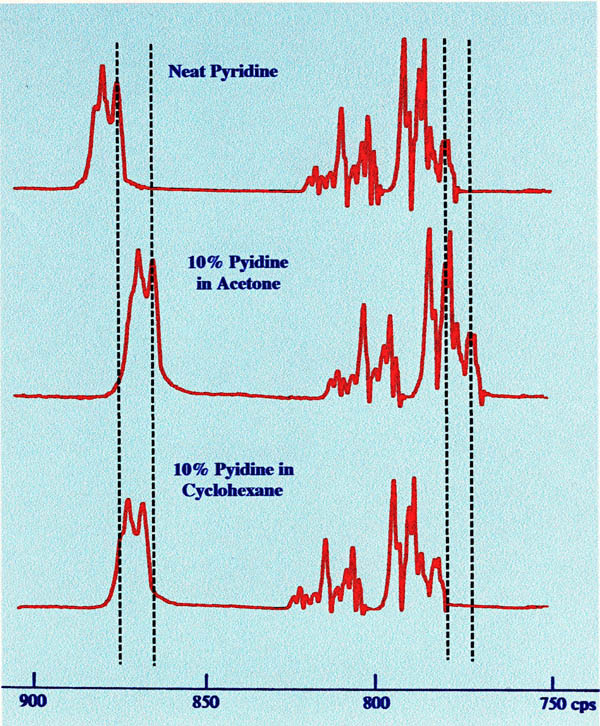

Solvents can affect the NMR Spectrum produced as the proton shifts can often be affected by the nature of the surrounding solvent molecules. The interacting molecules can also be, in fact, those of the surrounding molecules of the pure sample itself. This interference can arise from two sources; the first is the effect of changes in diamagnetic susceptibility of the solute or solvent and the other is the effect of solute/solute and solute/solvent interactions. Figure 10 shows the change in chemical shift of the pyridine protons when examined as a pure solvent and as 10% solutions of pyridine in acetone and cyclohexane .
Chemical shifts can also be affected by concentration changes and in addition temperature changes. These changes are generally small except for protons attached to oxygen , sulphur and nitrogen atoms. For example, a temperature change from –118oC to +75oC can cause the hydroxyl protons of ethanol to shift 1.5 ppm. The effect of sample concentration on chemical shift is demonstrated clearly in figure 11.

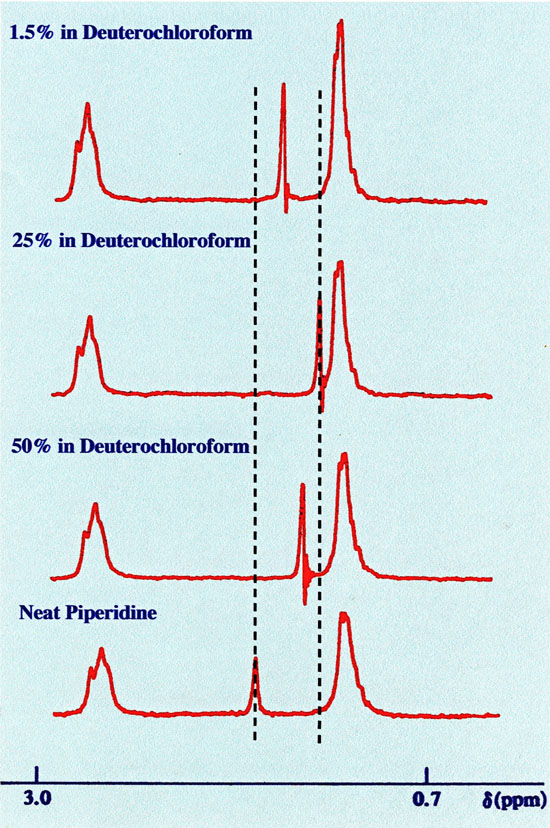

The greatest shift change occurs with the singlet, which becomes more shielded with the presence of the solvent and its increase from 25 to 50% of the sample. However, there appears to be some anomaly as the N-H proton appears to be more shielded in the 1.5% solution.
Another interesting solution effect is the proton replacement in such groups as OH, NH, SH and similar groups. The protons in these groups can easily be replaced by deuterium
e.g. R-XH +D2O = R-XD +DHO

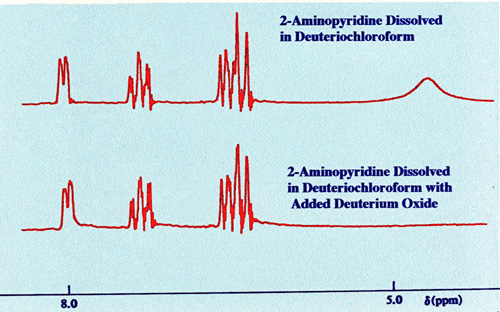

It is clear that the deuterium oxide must be present in adequate quantity so that the equilibrium is in favour of the proton replacement. An example is given in figure 12 where the proton in the N-H group of 2-aminopyridine is replaced by deuterium employing deuterium oxide in the sample solution.
The proton shifts of many aromatic compounds are strongly affected by concentration. Extrapolating the chemical shift of benzene in cyclohexane from 80% to infinite dilution will result in a shift of –0.3 ppm. The converse also applies for cyclohexane dissolved in benzene . The cause is the large diamagnetic anisotropy of aromatic molecules caused by the circulation of the ‘π’ electrons forming a ‘ring current’. This causes protons proximate to the ring centre to be shielded. These problems are not frequent but they should be kept in mind in the practice of NMR spectroscopy. From practical experience, the following general conclusions have been made with regard to benzene as a solute/solvent
A benzene nucleus will preferentially interact directly at electron deficient sites in any solvent molecule
Solute interaction with the benzene molecule can occur as a 1-1 association and transiently at any electron deficient site.
The orientation of the benzene molecule is a result of induced dipole polarization
As a result of polarization the positive charge
resulting from the induced dipole will normally be situated far from
the negative end of the dipole.
