Diffuse Reflectance IR Fourier Transform Spectrometry (DRIFTS)

The principle of Diffuse Reflectance IR Fourier transform spectrometry is depicted in figure 20.

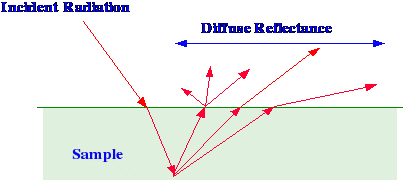

Figure 20. The Principle of Diffuse Reflectance IR Fourier Transform Spectrometry

When incident light strikes a surface, the light that penetrates is reflected in all directions and this is called Diffuse Reflectance. As the light that leaves the surface has passed through a thin layer of the reflecting material, its wavelength content will have been modified by the optical properties of the matrix. Consequently, the wavelength and intensity distribution of the reflected light will contain structural information on the substrate. It is clear that this process would be applicable to the study of surfaces and coatings and could obviously be employed to scan TLC plates. The use of the technique for scanning TLC plates was investigated by Zuber et al. [2].

The TLC plates were inserted directly into the spectrometer sample chamber and the Spectrum obtained by reflectance directly from the plate surface. A reference laser was used to aid in spot alignment, and the plate contributions to the background were subtracted from the Spectrum, which was obtained in the usual manner. It was found that spot identification was possible, providing reference spectra were available that had been obtained under the same operating conditions. The quality of the spectra and the useful size of the IR window available varied between different types of plate.

The preparation and care in handling both the sample and the background plates were extremely important to the success of the method. Although solvent selection was critical, providing the plate was completely dry, the solvent had no effect on the quality of the spectra produced. The Nicolet (Madison, WI) 6000 FTIR spectrometer equipped with a nitrogen cooled cadmium telluride detector was employed, and a Diffuse Reflectance attachment was used to run the spectra.

The interferometer was run at a mirror velocity of 0.586 cm/s and 2000 scans or less was found necessary to produce a good quality TLC/FTIR Spectrum. The TLC spot diameter varied between 2 and 8 mm, and the diameter of the infrared beam, focused on each plate, was 1 mm. The sample and background spectra were run, and the Spectrum of the sample obtained by difference. The analysis time was typically 15 minutes for the TLC separation, and about 30 minutes were needed to obtain the IR spectra. Examples of the results obtained from the tandem system are shown in figure 21.

It is seen that there is a distinct difference in the form of the spectra taken from the TLC plate compared with that from the KBr pellet. It follows that reference spectra that are to be used for solute identification should also be obtained from the TLC plate in the same manner. The mass of solute in each spot examined was about 10 μg but it was estimated that about 1 μg would be sufficient for a recognizable Spectrum to be obtained.

Direct measurements taken on the plate restricts the range of wavelengths that can be employed in the spectroscopic examination, whereas the removal of the solute from the plate allows the material to be examined over the normal range of wavelengths. Unfortunately, solute removal and recovery almost always involves losses, and sometimes the losses are accompanied by the decomposition or molecular rearrangement of labile materials.

Chalmers et al. [4] chose to use FTIR Diffuse Reflectance spectrometry in an off-line manner, by extracting the material from the spot before measurement.

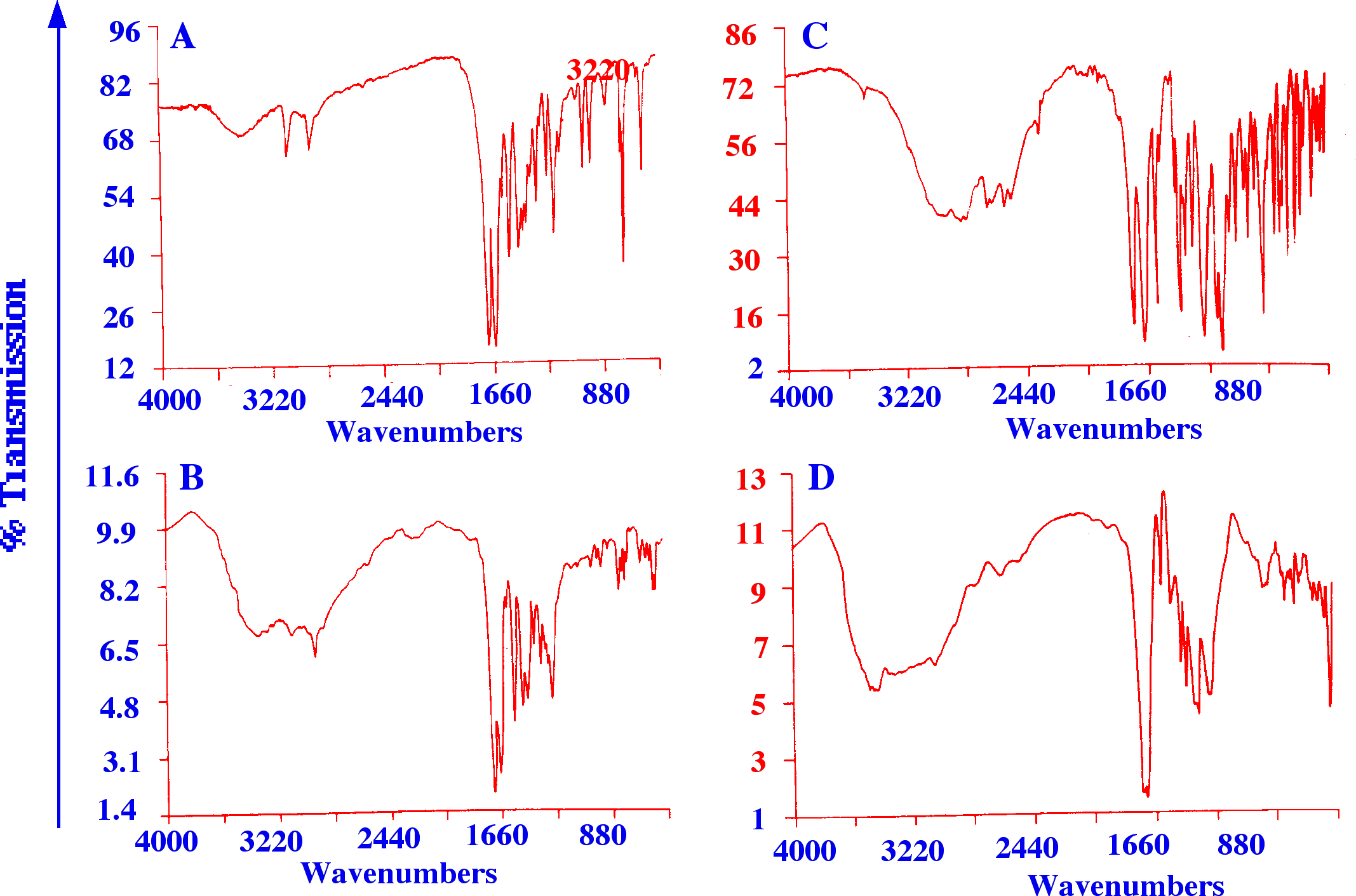

A and C, Spectra from KBr pellets of caffeine and aspirin respectively. B and D, Reflectance spectra from TLC plates of caffeine and aspirin respectively.

Figure 21. Transmission Spectra from KBr Pellets and Reflectance Spectra from TLC Plates of caffeine and aspirin

The solute on the TLC plate was transferred to a KCl pellet, made directly from ball-milled potassium chloride. 0.7 g of the dried powder was pressed into a 13 mm disk die, at a pressure of 500 psi. The resulting pellet was about 4 mm high (± 0.5 mm). A metal backed TLC plate was employed for the separation, and the spot cut out and placed, metal backing downwards, in a tube 5 cm long and 17 mm I.D..

The KCl pellet was placed on the top of the disc, and about 2 ml of chloroform carefully pipetted down the inside of the tube.

The chloroform was allowed to evaporate at room temperature, and after about an hour, the pellets were removed for IR examination. An example of the spectra taken of some samples provided by the plastics industry is shown in figure 22. It is seen that good spectra were obtained, but the process was tedious, and considering the extraction and concentration processes that were involved, the overall methodology does not appear to have provided a very good sensitivity.

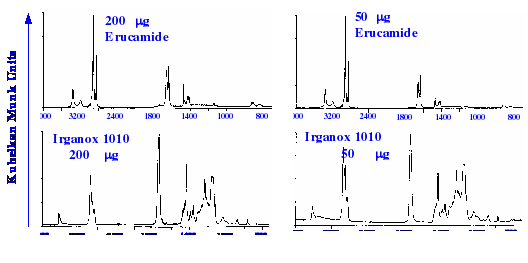

Figure 22. Diffuse Reflectance Spectra Obtained from potassium Chloride Pellets

.
