The Ion Trap Detector

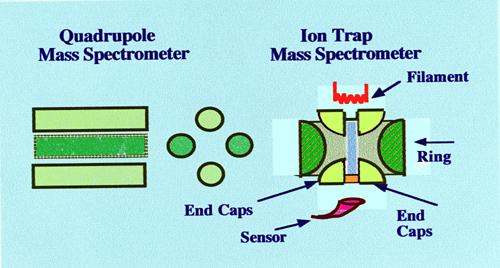

The ion trap detector is a modified form of the Quadrupole Mass Spectrometer, but was originally designed more specifically as a chromatography detector than as a instrument for structure elucidation or identification. Nevertheless the combination of the Ion Trap Mass Spectrometer with the chromatograph is another powerful tandem technique. The electrode orientation of the quadrupole Ion Trap Mass Spectrometer is shown in figure 76.

It was shown in figure 68 that the quadrupole spectrometer contains four, rod electrodes. The ion trap mass spectrometer has a quite different electrode arrangement and consists of three cylindrically symmetrical electrodes comprised of two end caps and a ring. The device can be made very small the opposite internal electrode faces being only 2 cm apart. Each electrode has accurately machined hyperbolic internal faces.

In a similar manner to the quadrupole spectrometer, an rf voltage together with an additional DC voltage is applied to the ring and the end caps are grounded. In the same way as the Quadrupole Mass Spectrometer, the rf voltage causes rapid reversals of field direction, so any ions are alternately accelerated and decelerated in the axial direction and vice versa in the radial direction. Again the operating parameters, (a), and (q), define the conditions of oscillation which are analogous to those for the Quadrupole Mass Spectrometer but, in this case, (r0) is the internal radius of the ring electrode.

Figure 76. Pole Arrangement for the Quadrupole and Ion Trap Mass Spectrometers

The ion trap is small and (ro) is typically about 1 cm. At a chosen voltage, ions of a specific mass range are held oscillating in the trap. Initially, the electron beam is used to produce ions and after a given time the beam is turned off. All the ions, except those selected by the magnitude of the applied rf voltage, are lost to the walls of the trap, and the remainder continue oscillating in the trap. The potential of the applied rf voltage is then increased, and the ions sequentially assume unstable trajectories and leave the trap via the aperture to the sensor. The ions exit the trap in order of their increasing m/z values.

The first Ion Trap Mass Spectrometers were not very efficient, but it was found that the introduction traces of helium to the ion trap significantly improved the quality of the spectra. The improvement appeared to result from ion–helium collisions that reduced the energy of the ions and allow them to concentrate in the center of the trap. The spectra produced are quite satisfactory for solute identification by comparison with reference spectra. However, the Spectrum produced for a given substance will probably differ considerably from that produced by the normal Quadrupole Mass Spectrometer.

A commercial Ion Trap Mass Spectrometer, Varian 500 MS mass spectrometer is shown in figure 77.

The device incorporates a new enhanced charge capacity system that extends the number of ions that can be stored in resonation which, in turn, increases the over all signal-to-noise ratio of the system. The spectrometer is fitted with an electro-spray ionization and atmospheric pressure ionization facilities, the latter being temperature programmable and, thus, improves the ionization efficiency of thermally labile materials. The two ionization systems can be exchanged in less than a minute.

Courtesy of Varian Inc.

Figure 77. The Varian 500-MS Ion Trap Mass Spectrometer

The ‘electro spray’-‘ion trap’ system readily produces multiple charged ions and as the mass analyzer discriminates on the basis of (m/z), ((m) is mass and (z) is the charge) and not just mass, then a doubly charged ion of mass 1000 will appear on the m/z scale at 500. Thus, multiple charged ions in effect extends the mass range of the mass spectrometer.

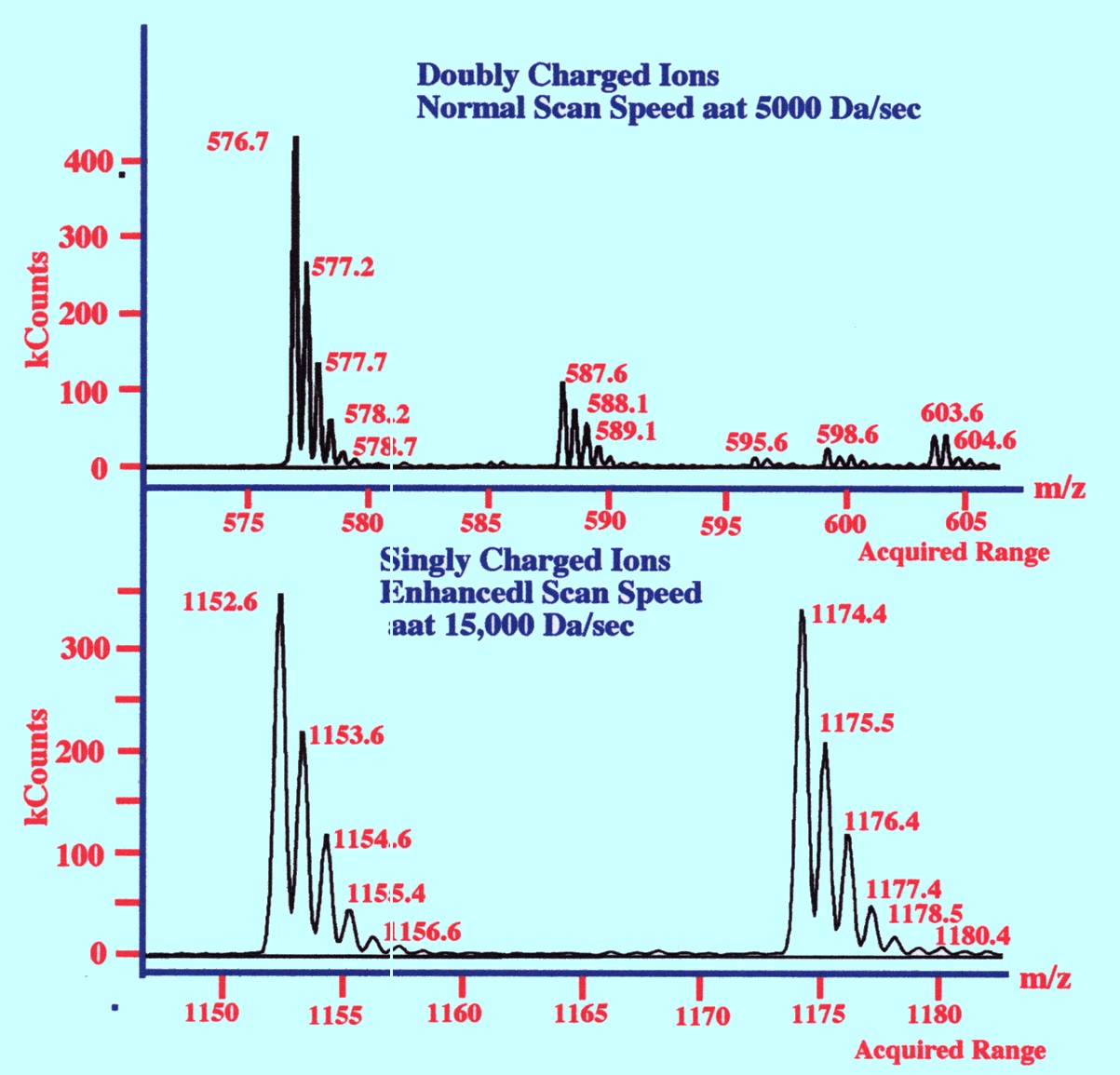

The heights of peaks having multiple charges are linearly relate to one another and, thus, by fitting a linear function to the data the presence of multiple charge ions can be exposed. An example of multiple charges is shown by the spectra in figure 78.

Courtesy of Varian Inc.

Figure 78. Spectra Demonstrating the Presence of Double Charged Ions.

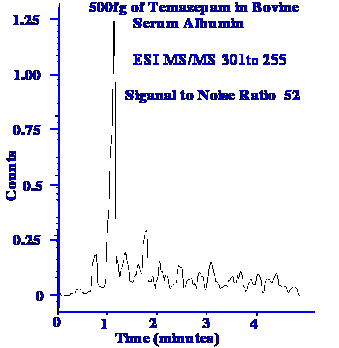

The Ion Trap Mass Spectrometer is extremely sensitive as shown by the chromatogram that was monitored by the spectrometer given in figure 79. It is seen that the peak represents a sample size of 500 fg. It should also be noted that the signal-to-noise ratio is 52. Now, assuming the peak is discernable when its height is twice the noise, then the ultimate sensitivity will be about ca. 19 fg.

Figure 79. Spectra Demonstrating the High sensitivity of the Ion Trap Mass Spectrometer.
